Using IIS (Microsoft Internet Information Server)

How to use IIS rather than Terminal Service Plus default Web servers

Pre-requisites

It can be a good idea to Update Terminal Service Plus to be sure that you get the latest TSplus programs.

1) IIS configuration

  • Install IIS with the following modules : CGI, ISAPI Extensions and ISAPI Filters.

  • Configuring the IIS Port:

Access the IIS management console, expand the list below your server name, then Expand the “Sites” menu and right click on “Default Web Site” and click on “Edit Bindings”:

iis 1

Click on “http” and “Edit”. Change the port to 81 and click Ok, and then click Close:

iis 2

Then, restart the IIS Manager.

2) Create virtual directory for CGI

In the left panel menu, expand the menu under your server, then “Sites,” and right-click on your site to add a new “virtual directory”, as shown in the image below:

iis 3

On the window that will open fill in as follows:

Alias: cgi-bin

Physical path: “C:\Program Files(x86)\TSplus\Clients\www\cgi-bin”

iis 4

Then click “OK” and you will see that the “cgi-bin” virtual directory has been added to your IIS Web site. Now, right-click this “cgi-bin” virtual directory and click on “Convert to Application”. Click “OK” and accept the default settings.

iis 5
iis 6

Then select the “Handler Mappings” icon for this folder on the right side of the Manager window:

iis 7

From the list of Handler Mappings, double click on “CGI-exe”.
Then, search the hb.exe executable from the Executable property box and click OK.

iis 14

A prompt for confirmation appears. Click “OK” to allow this ISAPI extension.

iis 15

Now click on “Edit Feature Permissions”:

iis 8
מסמכים 29בב

Check the “Execute” checkbox and click OK:

iis 9
מסמכים 292

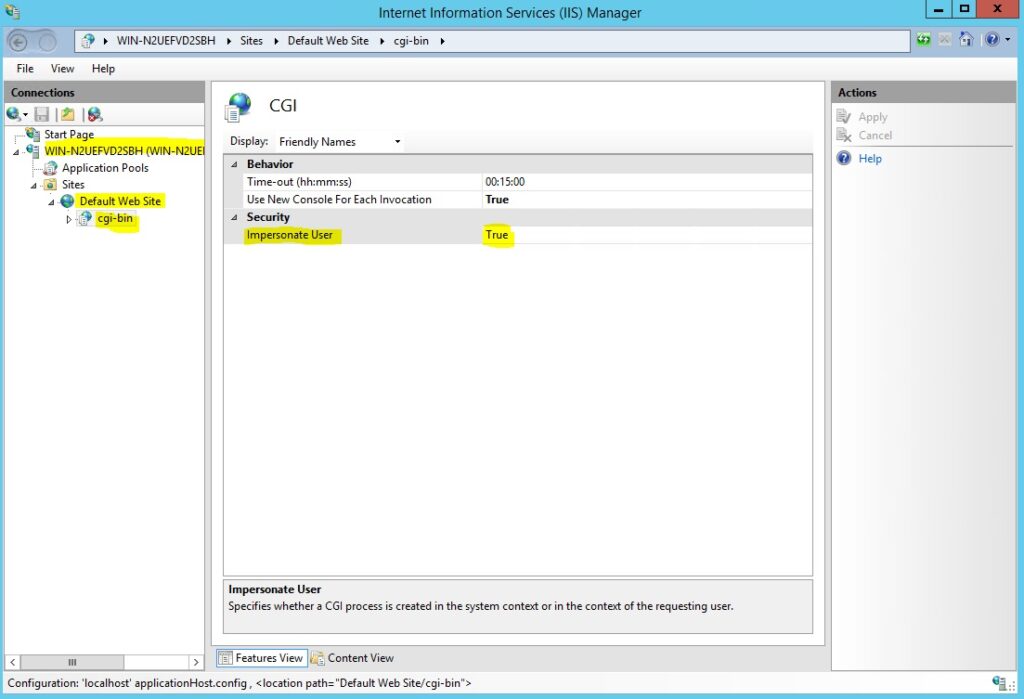

Back to the “CGI-bin” Home, click on “CGI” to open the CGI properties:

iis 17

Change the value of “Use New Console For Each Invocation” to “True”. Then, click “Apply” to save the changes.

3) Configure CGI extension permission

Now, the last step is to allow the CGI extension to run on the server. Click on the “ISAPI and CGI Restrictions” icon. This can be found by clicking on the machine name in the menu on the left side of the window.

iis 10

On the “ISAPI and CGI Restrictions” page, click “Add …” on the right side of the window. Now specify the full path to the “hb.exe” file hosted in the TSplus folder. Be sure to check the “Allow extension path to execute” option, as Illustrate the following images:

iis 11
iiis
מסמכים 30ג
iis

4) Add Mime types in IIS

Open a command prompt as an administrator and run the following commands:

%SystemRoot%\system32\inetsrv\appcmd set config /section:staticContent /+[fileExtension=’.dat’,mimeType=’text/plain’]

%SystemRoot%\system32\inetsrv\appcmd set config /section:staticContent /+[fileExtension=’.’,mimeType=’text/plain’]

Restart IIS.

5) Configure IIS Directory Permissions

Give full permission to the group “Everyone” in the directory “C:\inetpub\wwwroot”

6) Configure TSplus

Go to the Web Server tab of the AdminTool, then choose the “Use a Different HTTP server” option:

web server different http

Then, in the same window, click on “Select a new Web Server root path”, and put the path of the IIS directory, which should be something like: “C: \ inetpub \ wwwroot”. Now click on “Save and Restart the AdminTool”.

web server root path

The following messages will appear:

web server root path2
web server root path3

Wait. The Admintool will be closed automatically. Then open the Admintool again and click on the Web tile.

Finally, restart the web servers:

web servers restart 1

7) Test with local host

Warning: Use a different user account.

If you try with your current user account from your own RDP session to the server, then you will be disconnected and not be able to reconnect.
